Submitting data to NCBI GEO

A step-by-step guide to depositing high-throughput sequencing data in the NCBI Gene Expression Omnibus, from files on a cluster to an accession number in your inbox. Written for people preparing their first GEO submission.

GEO’s own documentation is authoritative and worth reading alongside this. The links are collected at the end. This guide covers what the steps involve in practice and the points where submissions commonly stall.

Before you start

Use a fresh Chrome incognito or private window for the whole submission session, and keep it open from login until you press submit. NCBI’s sign-in interacts poorly with other sessions in the same browser profile, and the resulting errors appear later and are hard to trace back.

Account and upload space

Submission requires a My NCBI account linked to a GEO Profile. The link is one-to-one, and the contact details in the profile are published on every record you submit.

Before you can submit to GEO, you must have a My NCBI account associated with a GEO Profile. Each My NCBI account can be associated with only a single GEO Profile, and all submissions made under your account will display the contact information contained in the GEO Profile.

Do this before you touch any data. Your personal FTP upload space is provisioned per account and does not exist until you request it.

1. Sign in at ncbi.nlm.nih.gov/geo/submitter, or create an account.
2. Complete the GEO Profile. The Investigator block is what appears publicly. The Submitter block is for cases where the person uploading is not the principal investigator. Both receive GEO’s correspondence.
3. Open the FTP instructions page, tick the attestation checkbox, and request your personal upload space.
4. Note the upload space name. It has the form uploads/yourname_abcd1234 and capitalisation matters.

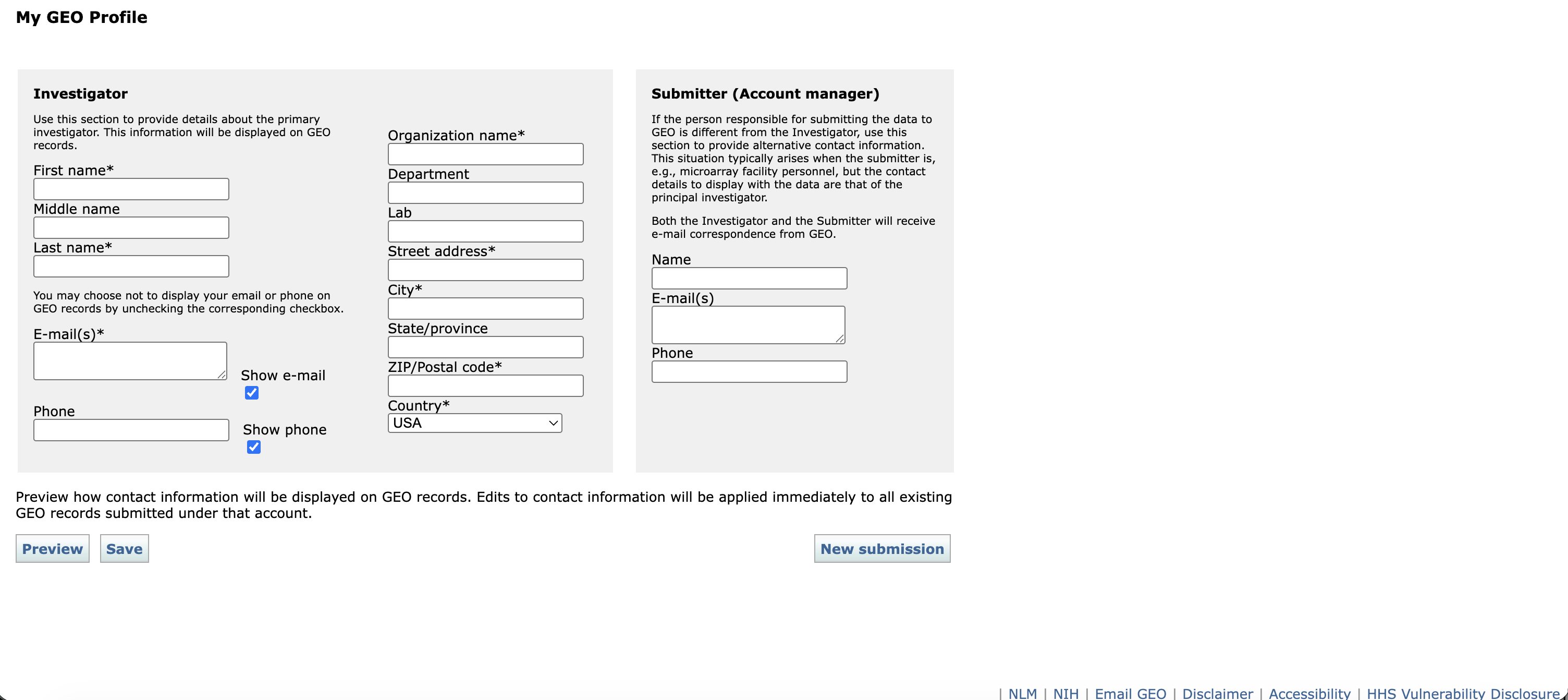

The GEO Profile. Investigator details appear publicly on every record.

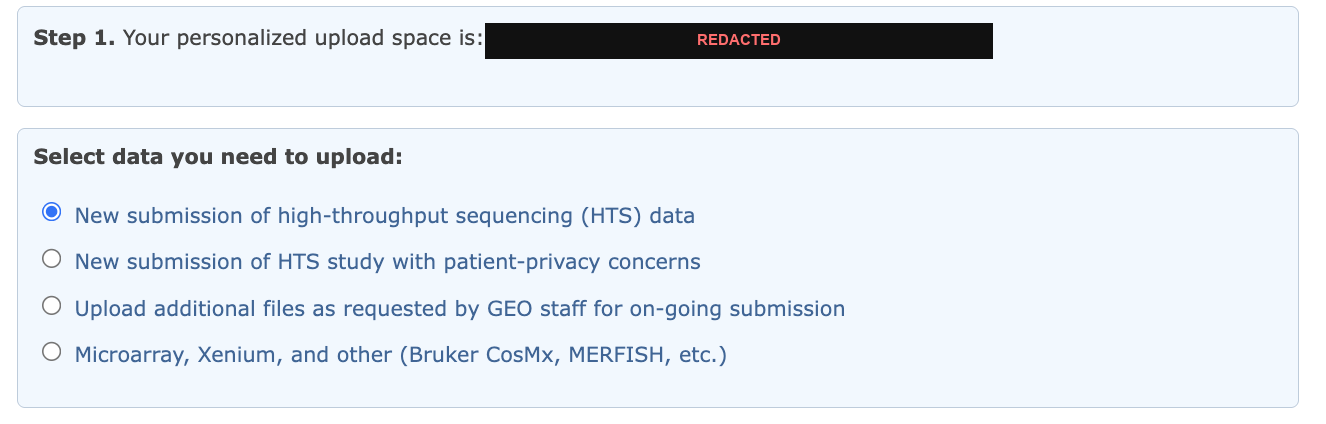

Step 1 of the FTP page gives your upload space name, blacked out here. Choose the first option for a standard sequencing submission.

What GEO accepts

Raw data are required. For sequencing, that means FASTQ, BAM or CRAM, with FASTQ compressed using gzip or bzip2. Single-cell studies should be submitted as FASTQ so the reads can be archived in SRA.

Processed data must be quantitative. This is the requirement submissions most often fail.

The processed data should have a quantitative component, such as gene abundances or other count data. Do not submit read alignments (e.g., BAM, SAM, BED) as processed data, as these are considered intermediary files and do not include a quantitative component.

For single-cell studies the processed data must be cell-level. GEO accepts Market Exchange (MEX) triplets, HDF5 archives, and RDS objects. Cell Ranger’s filtered_feature_bc_matrix.h5 is an accepted processed data file and is the simplest option for 10x Genomics studies, since it carries the barcodes, features and counts in a single file per sample. The MEX triplet (barcodes.tsv.gz, features.tsv.gz, matrix.mtx.gz) is equally acceptable, but each file must be prefixed with the sample name so that names stay unique across the submission.

Two conditional requirements are easy to miss:

• If you used cellranger aggr and are submitting H5 files, you must also submit aggregation.csv.
• If your libraries include feature barcoding (ADT, HTO, CMO and similar) under a 10x protocol, you must also submit feature_reference.csv, and each library goes on its own row in the spreadsheet (sample1_GEX, sample1_ADT).

Limits and naming

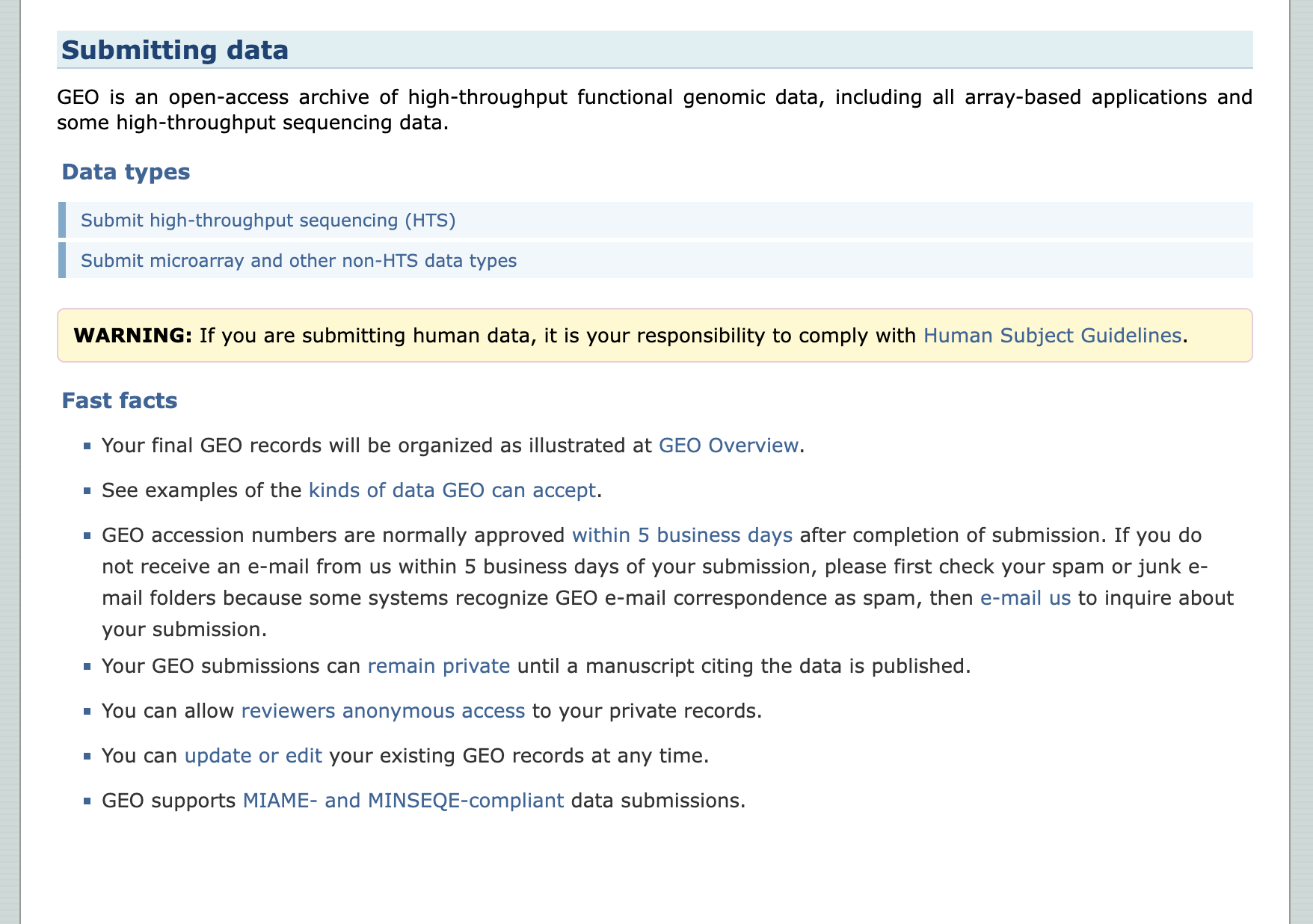

Submissions can stay private until publication, reviewers can be given anonymous access, and accessions normally arrive within five business days.

Gather your files into one folder

GEO requires one subfolder per submission containing only the raw and processed files listed in your spreadsheet. No nested directories, no archives, no extra files.

Sequencing output rarely has that shape. FASTQ files usually sit in per-sample or per-lane directories, and processed files sit under a separate pipeline output tree. Symbolic links let you present the required flat structure without duplicating the data: the links are created instantly regardless of file size, consume no meaningful disk space, and leave the original directory layout untouched, so nothing downstream that depends on those paths breaks. Copying would double your storage footprint and take as long as the upload itself.

Create the folder and link each file into it:

mkdir geo_submission
ln -s /path/to/data/sample1/sample1_S1_L001_R1_001.fastq.gz geo_submission/

To link many files at once:

find /path/to/fastq -name '*.fastq.gz' -exec ln -s {} geo_submission/ \;
find /path/to/cellranger -name 'filtered_feature_bc_matrix.h5' -exec ln -s {} geo_submission/ \;

Cell Ranger writes the same filename for every sample, so link the processed files individually with a name that identifies the sample:

ln -s /path/to/cellranger/sample1/outs/filtered_feature_bc_matrix.h5 \
      geo_submission/sample1_filtered_feature_bc_matrix.h5

Before moving on, confirm the folder is flat, complete and free of broken links:

ls geo_submission | wc -l                       # expected file count
find geo_submission -xtype l                    # broken links, should print nothing
find geo_submission -mindepth 1 -type d         # subdirectories, should print nothing

GEO does not accept symbolic links in a submission. The links are a local staging device only. The upload command in step 7 dereferences them, so what reaches GEO’s server is the file each link points at.

Fill in the metadata spreadsheet

Download the template from the HTS instructions page. Fill it in by hand. It contains worked examples for each assay type that are worth reading before you start.

The Metadata sheet has four sections:

Three rules are easy to violate:

• Every raw filename must appear exactly once in the SAMPLES section, and every file listed under PAIRED-END must also appear there.
• Every file in your upload subfolder must be listed in the spreadsheet. GEO states plainly: “Do not upload extra files.”
• Anonymise the metadata. Do not include personally identifiable information.

Sample titles are easier to read if they follow a consistent pattern across the study, for example Organism, tissue, age, sex, condition, id: SAMPLE_NAME.

MD5 checksums

Checksums are optional, but they let GEO diagnose corruption if a file arrives damaged.

Providing the MD5 checksums for raw and/or processed files in the ‘MD5 Checksums’ tab is optional. We only use checksums to troubleshoot when file corruption is detected in uploaded files. Do not submit MD5 checksums in separate file(s).

Compute them and paste the values into the MD5 Checksums tab of the spreadsheet. Do not upload a checksum file — that would count as an extra file.

md5sum geo_submission/* > md5_checksums.txt     # Linux
md5 geo_submission/*    > md5_checksums.txt     # macOS

For a large submission this reads every byte and takes a while, so run it on a compute node rather than a login node.

While you are reading every file anyway, it is worth testing that the gzip streams are intact. A truncated FASTQ still has a valid gzip header and will pass a superficial check, but fails on decompression:

gzip -t geo_submission/*.fastq.gz && echo "all archives intact"

Upload over FTP

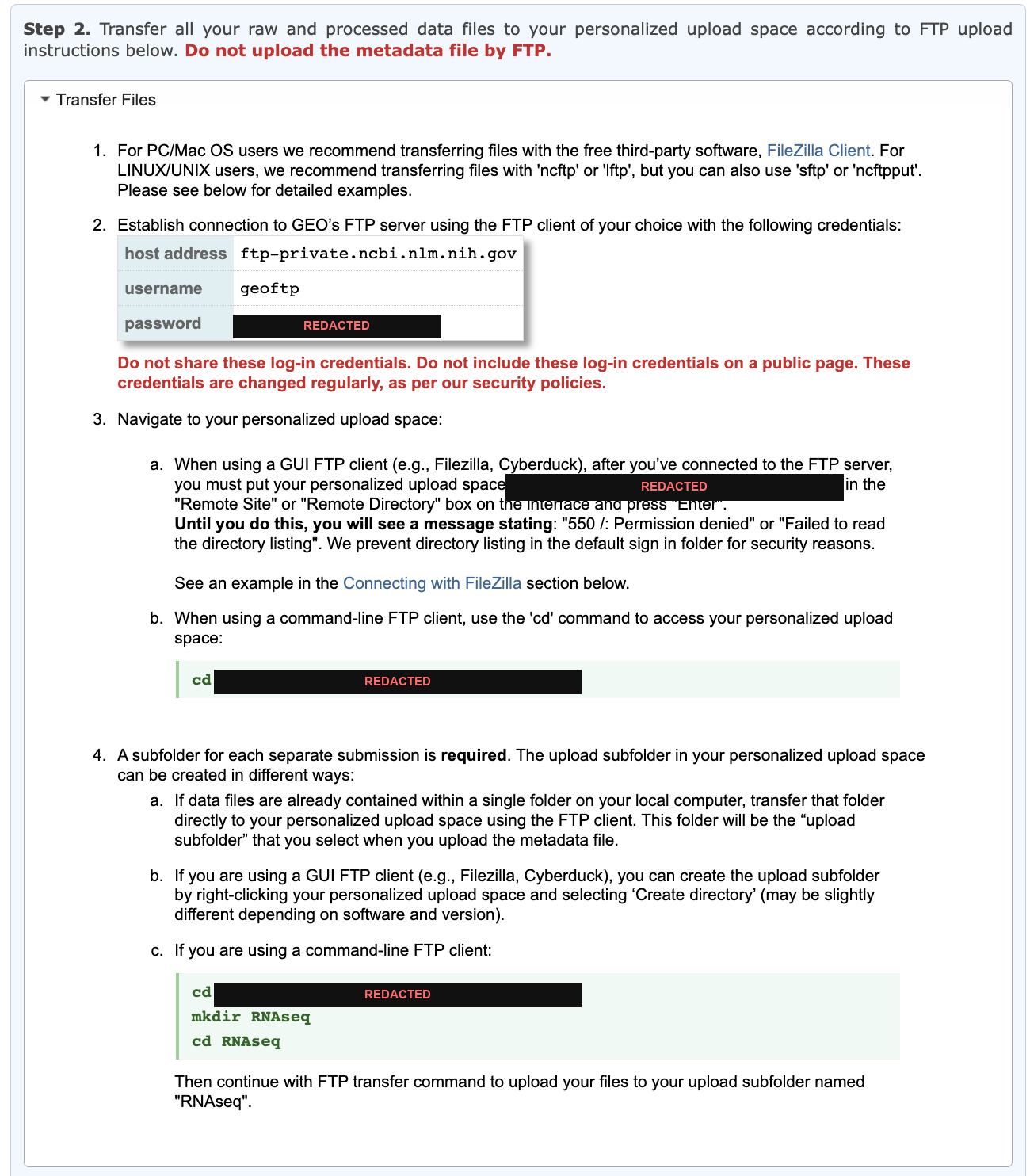

Host address and username are the same for every submitter. The password is per-session and rotates, so read it from your own logged-in page each time.

Connect with lftp and enter the password when prompted:

lftp -u geoftp ftp-private.ncbi.nlm.nih.gov

The root of your upload space does not permit directory listing, so change into it before creating anything. Otherwise you get a confusing permission error:

Until you do this, you will see a message stating: “550 /: Permission denied” or “Failed to read the directory listing”. We prevent directory listing in the default sign in folder for security reasons.

A subfolder for each submission is required. Give it a meaningful name:

cd uploads/YOURNAME_abcd1234
mkdir scRNAseq
cd scRNAseq

Then upload the staged folder:

mirror -R -L --parallel=4 /path/to/geo_submission .

-L follows the symbolic links and uploads the files they point at. Without it lftp recreates the links themselves, and GEO receives a few hundred bytes of path text in place of each file. The transfer reports success either way, so this is worth getting right the first time.

mirror is resumable. If the connection drops, run the same command again and only the missing or incomplete files transfer.

Check what arrived

A successful exit status and a correct file count do not confirm a good upload. Compare file sizes on both ends.

In the same lftp session:

cls -s --block-size=1

Compare that against your local sizes:

ls -lL geo_submission | awk '{print $9, $5}' | sort

Any file smaller on the server than on disk was truncated in transfer. Re-run the mirror command, which resends only the affected files.

Submit the metadata spreadsheet

The spreadsheet is uploaded through the website, not by FTP.

Do not upload the metadata file by FTP.

Go to submit.ncbi.nlm.nih.gov/geo/submission/meta in the same browser session and complete four fields:

1. Upload subfolder — select the folder you filled. If the list is empty, the FTP transfer has not registered yet, or you are in a different browser session from the one that created it.
2. Template used — seq_template.xlsx for raw data uploaded to GEO, or seq_template_with_sra_accessions.xlsx if the raw data is already in SRA.
3. The spreadsheet. Close it in Excel first, so you do not upload a stale copy.
4. Release date. See the note below.

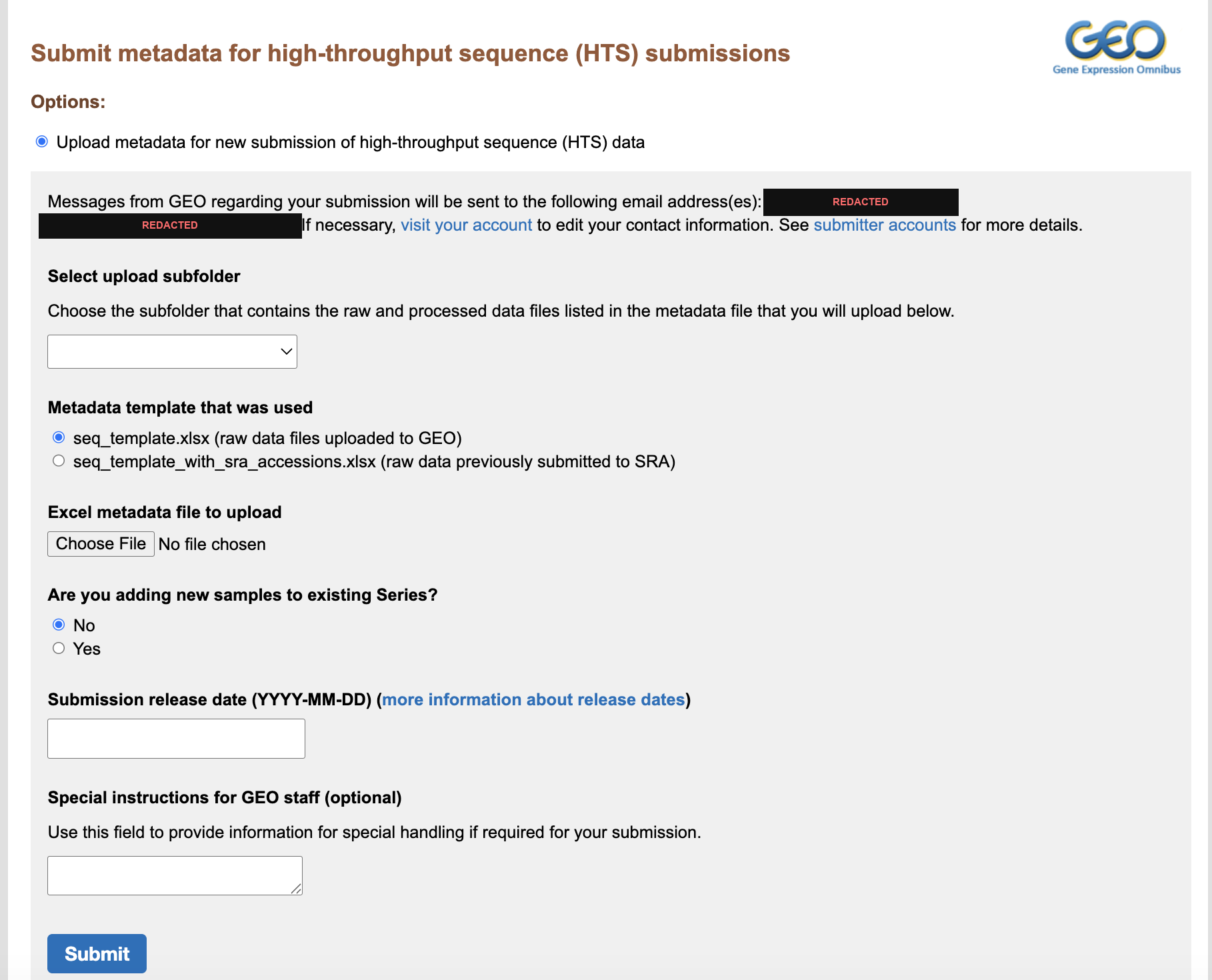

The metadata submission form. The email addresses shown are taken from your GEO Profile and receive all subsequent correspondence.

GEO releases a private Series automatically on its release date, without prompting. If your manuscript has not been published by then, the data becomes public anyway. Set a date comfortably far ahead — you can release earlier at any time — and note it somewhere you will see it.

What happens next

1. Automated validation, within minutes to hours. GEO checks that the files listed in your spreadsheet exist on the server and parse correctly. You are emailed either way.
2. If errors are reported, you have two weeks. GEO removes incomplete submissions from the server after that. Keep your spreadsheet in case you need to resubmit.
3. Accession within five business days. The letter contains your GSEnnnnnn and instructions for creating a reviewer access token, which is what journals ask for when they request reviewer access to unpublished data. You do not need to request the token separately.
4. Your submission is not visible on the GEO website until it has been accessioned and approved. This is expected; do not resubmit.

If nothing arrives after five business days, check your spam folder before contacting GEO. Their correspondence is frequently filtered.

Reference

GEO revises these pages without notice. Where this guide and GEO disagree, GEO is correct.

Corrections and additions are welcome through the repository. Maintained by Dayuan Wang.
